Digital Knowledge Assistant

A chatbot that can asynchronously answer visitor questions about the ARM Institute's previous projects and basic robotics questions remotely.

Through client conversations, I learned of a need for a seamless way for manufacturers to learn about robotics on their terms. Additionally, the client continues to produce an overwhelming amount of research and projects in the field, limiting even experts from having a full picture.

Through the use of a Large Language Model (LLM), as well as retrieval-augmented generation (RAG), and a vector database, users can have unprecedented access to our client's knowledge base.

Try it out on this page (bottom right), or on a mockup of the client's site here.

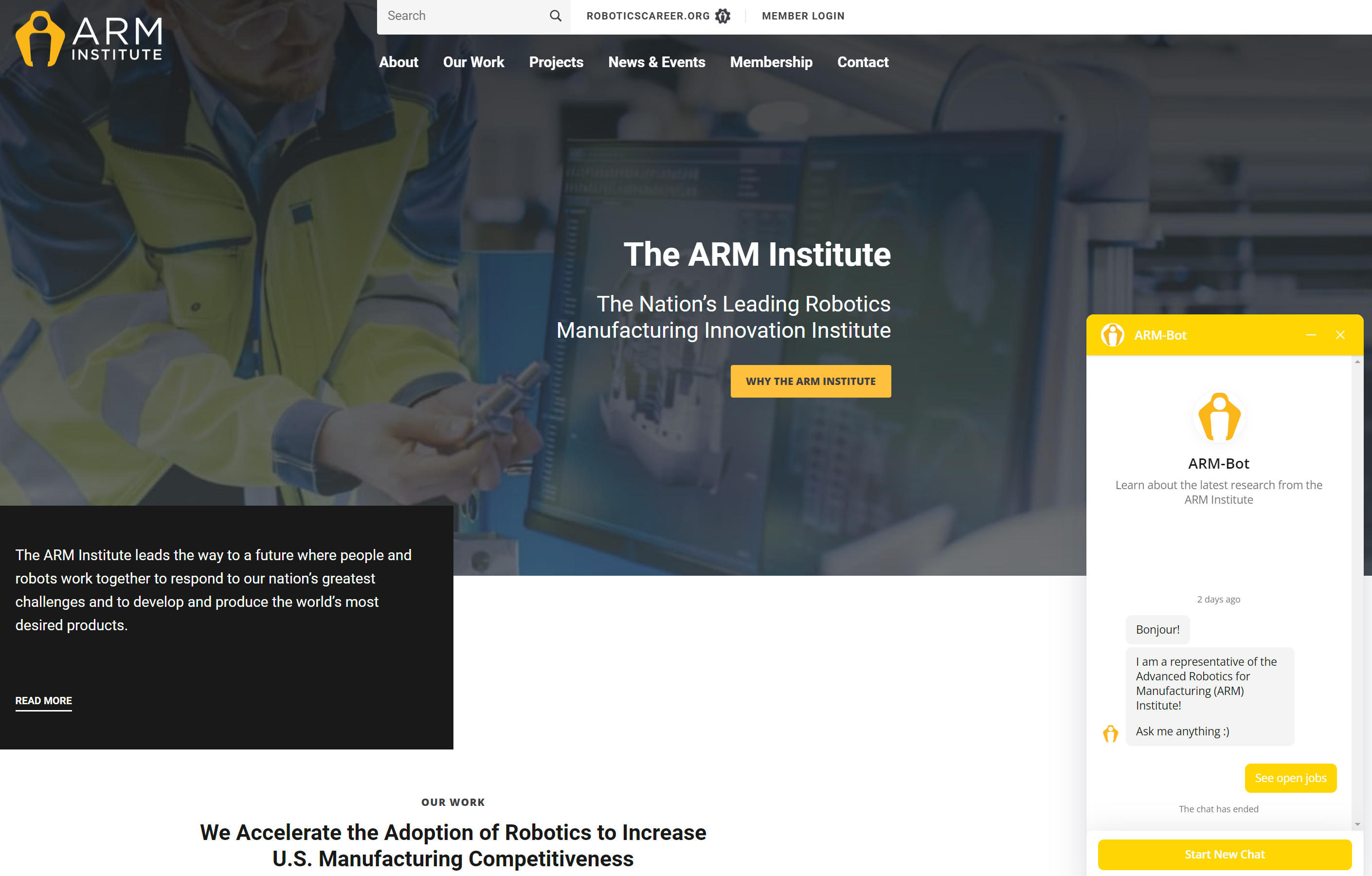

Figure 1: The knowledge assistant, prototyped with Voiceflow, staged for implementation

Currently access to one client project, roboticscareer.org, is supported. In the short-term future, a candidate could go from no knowledge, to a working understanding and enrollment in a skills training program from one interface.

Figure 2: Next iteration, prototyped with NextJS and Pinecone on Vercel

To assist with user testing, I deployed a more robust version of the digital assistant, with the goal of referencing specific portions of documents. This could be used by ARM Institute staff to support client recommendations.

Portable Conversation Facilitator

A card activity kit which is given by members of the ARM Institute. It is pocket-sized and can help manufacturers scope out solutions onsite and also facilitate conversations with operators.

Figure 3: A digital copy of the first deck

These cards have even more beneath the surface. Each pack includes an extended reality (XR) anchor, QR code, NFC chip link, and 3D printed holding kit. They are also functional for games! With these additional touchpoints, our client should have no issue ensuring that published content remains in top condition, and facilities all across the region have a new breakroom staple.

While our client does have XR deployments, these are limited to a two-dimensional link aggregation functionality. Our prototype differs in that it allows the placement of 3D models inside the manufacturer's own facility, as opposed to needing the original image anchor inside our client's lobby.

Figure 4: Current client XR deployment

For environments where cameras are ineffective, or the user's operating system is incompatible with the spatial featureset, we included the NFC chip in the card carrier. This allows the vast majority of mobile devices to simply tap to receive a URL prompt.

Figure 5: Card testing with the cohort

These analog cards certainly had merits, and I wanted the deliverable to include at least one offering that wasn't network dependent. This brought me to the idea of using extended reality, that could augment the cards in some scenarios, but would not be necessary to receive the benefits. To prototype this, I used transluscent NFC chips that would better convery the mixed reality component, as well as serve as an image anchor for testing. I also took advantage of NFC's ability to be rewritten, and dynamically updated cards and their pages for each test.

Figure 6: Adapting and encoding cards on-site

Future work could include a mounting bracket to store cards near relevant equipment. Currently, each include signifiers for process, training level, and integration points.

Figure 7: 3D printed accompanying holder

Extended Reality (XR) Coach

Building from the analog cards, I tested extended reality as a way to provide additional utility for education and training.

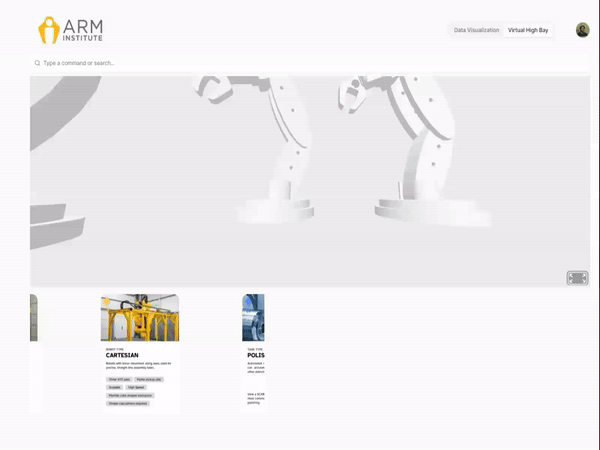

As a late-breaking feature, I tested this in-house with the Robotics Institute at Carnegie Mellon University, and adapted the functionality with A-frame, WebXR, and Three.js for use in the deliverable.

Future work includes object recognition, which would allow a user to scan a scene and create new cards in-situ, similar to my last experiment with the NFC chips. This could allow for training processes to be self-documenting, and replayable.

Collaborative Robot (Cobot)

While the XR and analog training solutions were in development, I considered current robotics-teaming trends. Cobots are a form of automation that include humans, allowing for more flexible integration and precision results.

Figure 8: Fetch the cobot at a user test in the Tepper AI Makerspace

Through site visits and conversations at client workshops, I learned that many manufacturers and future clients already have improvised robotics solutions. It seems that cobots are often a first step to reaching out to the ARM Institute. As a result, I ultimately chose not to pursue this route of prototyping beyond Arduino sensors and datalogging, so as to have a greater impact on the downstream onboarding.

Figure 9: An improvised solution at Atlas Metals

Kiosk

Figure 10: A kiosk pretotype user testing

As a vehicle for the deliverables, I considered what the most impactful device would be for the user experience. While mobile devices are most commonly used during site visits, and headsets would have the most degrees of freedom for extended reality tasks, and desktops are available at almost all manufacturing sites, a kiosk could be accessible to visitors. If developed further, a kiosk could provide an additional touchpoint during client workshops, or perhaps allow for self-guided tours, supporting educational goals.

Process

An early ecosystem proposal included five intial components: a collaborative robot (cobot), extended reality (xr) environment, remote sandbox connection, card set activity, and a chatbot with fuzzy search.

Figure 11: Initial ecosystem

To help validate our assumptions, there were meetings with two client stakeholders - the Chief Operations Officer (COO), and a Program Manager (PM). This led to a narrowed down plan for Spring deliverables, with more polish and functionality in each remaining proposal.

However, outside of manufacturing-related prototypes, there is also a selection of data analysis tools for planning our site visits and client impact. These can be interacted with here and here, or below, and show the scope of robotics career hiring and grant-eligible manufacturers. As 'side-quests', these tools allowed practice for the geospatial features in the summer deliverable, as well as provide non-negligble technical infrastructure value to the client.

Figures 12 and 13: Our data analysis tools

Activities

To guide the ideation and design process, I referenced a variety of activities to help me understand the client's needs and the potential of the deliverables. These included design thinking, end-to-end analysis, co-creation with experts. I'm particularly grateful to Pittsburgh's BSides, Code & Supply, and PyData communities, as well as the Smart Manufacturing Experience conference for their insights.

Figures 14, 15, 16, and 17: Design, ideation, and co-creation
